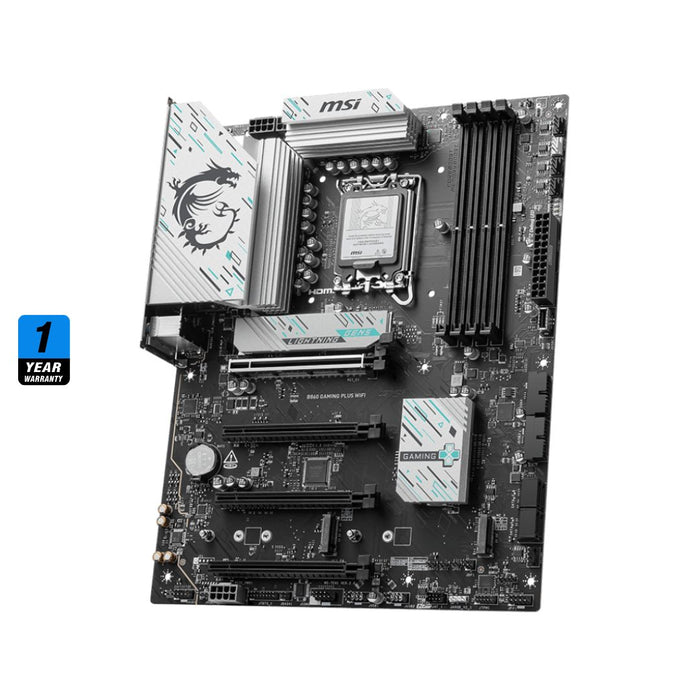

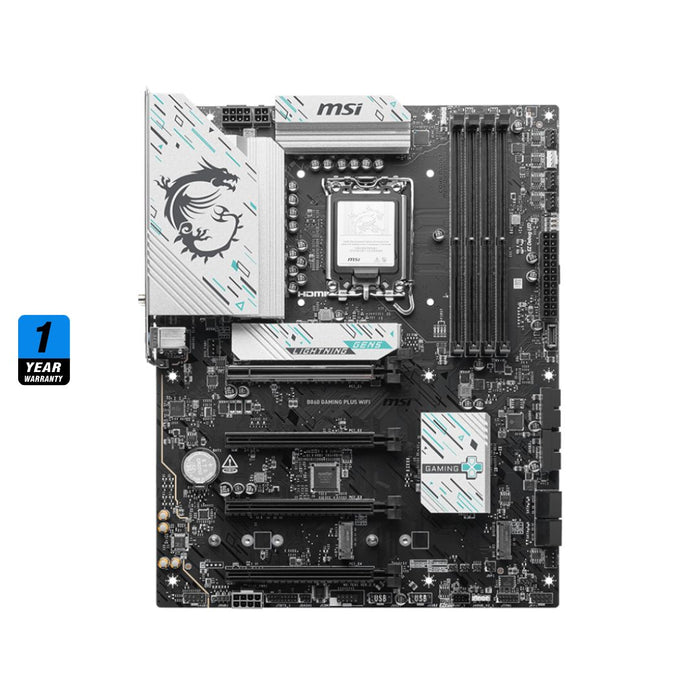

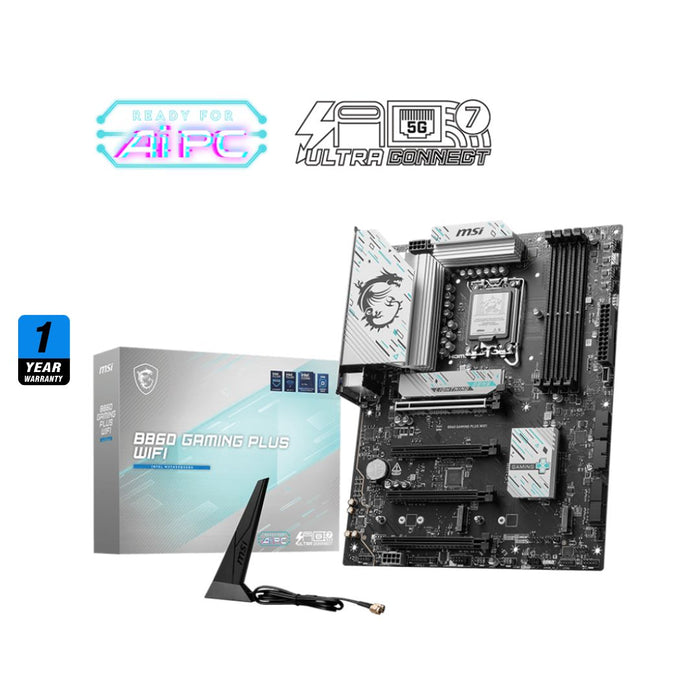

MSI B860 GAMING PLUS WIFI , Motherboard

Motherboard Specification

• Socket / CPU Support: Intel LGA 1851 (Supports Intel Core Ultra Processors - Series 2)
• Chipset: Intel B860
• Form Factor: ATX (243.84 mm x 304.8 mm)
• Memory Support: Dual-Channel DDR5 (Up to 8800+ OC MT/s / JEDEC 6400–4800 MT/s), Intel XMP 3.0, CUDIMM support, Non-ECC Un-buffered
• Memory Slots & Max Capacity: 4x DDR5 UDIMM slots, up to 256 GB max capacity
• PCIe Expansion Slots:
  ◦ 1x PCIe 5.0 x16 slot (PCI_E1, from CPU, with Steel Armor)
  ◦ 1x PCIe 4.0 x16 slot (PCI_E3, supports x4 mode from chipset)
  ◦ 2x PCIe 4.0 x1 slots (PCI_E2 & PCI_E4, from chipset)
• M.2 Storage Slots:
  ◦ 1x M.2 Gen5 x4 slot (Up to 128Gbps, supports 2280/2260/2242, from CPU)
  ◦ 1x M.2 Gen4 x4 slot (Up to 64Gbps, supports 2280/2260/2242, from chipset)
  ◦ 1x M.2 Gen4 x2 slot (Up to 32Gbps, supports 2280/2260, from chipset)
• SATA Ports: 4x SATA 6Gb/s (Supports RAID 0, RAID 1, RAID 5, and RAID 10)

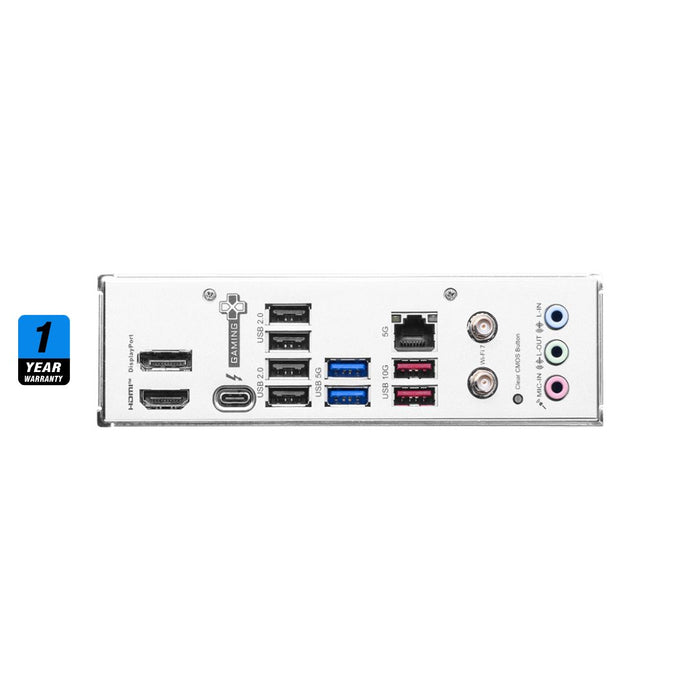

• Rear I/O USB Ports:
  ◦ 1x Thunderbolt 4 40Gbps Type-C (Supports DisplayPort 2.1 & 15W power charging)
  ◦ 2x USB 10Gbps (USB 3.2 Gen 2) Type-A
  ◦ 2x USB 5Gbps (USB 3.2 Gen 1) Type-A
  ◦ 4x USB 2.0 Type-A
• Internal Front Panel USB Headers:
  ◦ 1x USB 10Gbps Type-C header (supports 1 port)
  ◦ 2x USB 5Gbps headers (supports 4 Type-A ports)
  ◦ 2x USB 2.0 headers (supports 4 ports)
• Networking & Connectivity: Intel Killer E5000 5Gbps LAN, Intel Killer BE1750x Wi-Fi 7 (2.4GHz / 5GHz / 6GHz, up to 5.8Gbps), Bluetooth 5.4
• Display Outputs:
  ◦ 1x HDMI 2.1 (Max 4K @ 60Hz)
  ◦ 1x DisplayPort 1.4 (Max 4K @ 60Hz)
  ◦ 1x Thunderbolt 4 Type-C (DisplayPort 2.1, Max 8K @ 60Hz / 4K @ 120Hz)
• Audio Codec: Realtek ALC897 Codec, 7.1-Channel High Definition Audio
• Power Delivery / Power Connectors: 12+1+1+1 Duet Rail Power System; 1x 24-pin ATX main power, 2x 8-pin CPU power (CPU_PWR), 1x 8-pin PCIe power (PCIE_PWR)
• RGB & Fan Headers:
  ◦ 1x CPU Fan header, 1x Combo (Pump/System) Fan header, 4x System Fan headers
  ◦ 2x Addressable V2 RGB LED headers (JARGB_V2), 1x 4-pin RGB LED header (JRGB)
• Special Features: EZ M.2 Shield Frozr II, EZ PCIe Clip II release mechanism, 4x EZ Debug LEDs, Rear Clear CMOS Button, JTBT5 header (Thunderbolt 5 card support)
