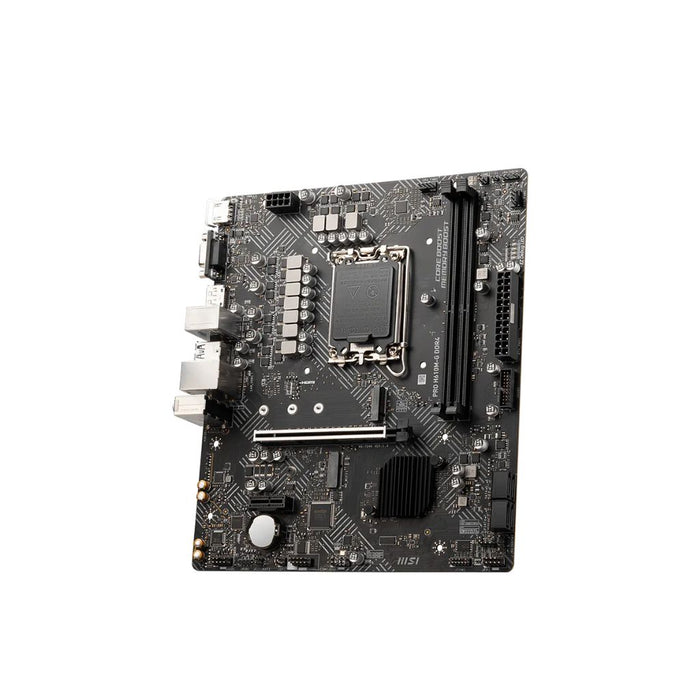

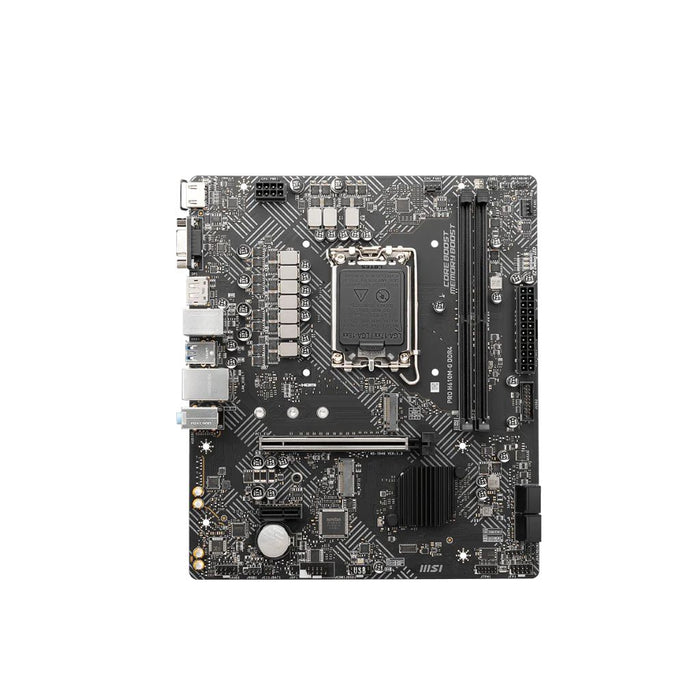

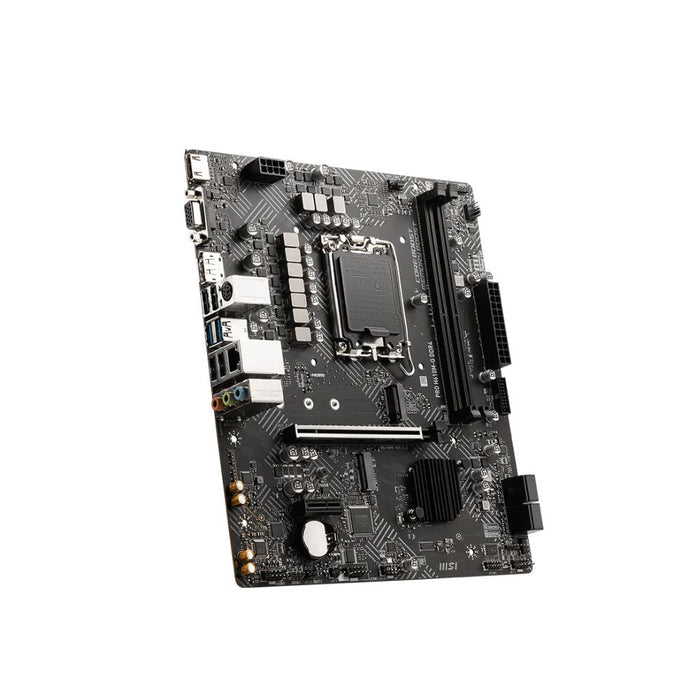

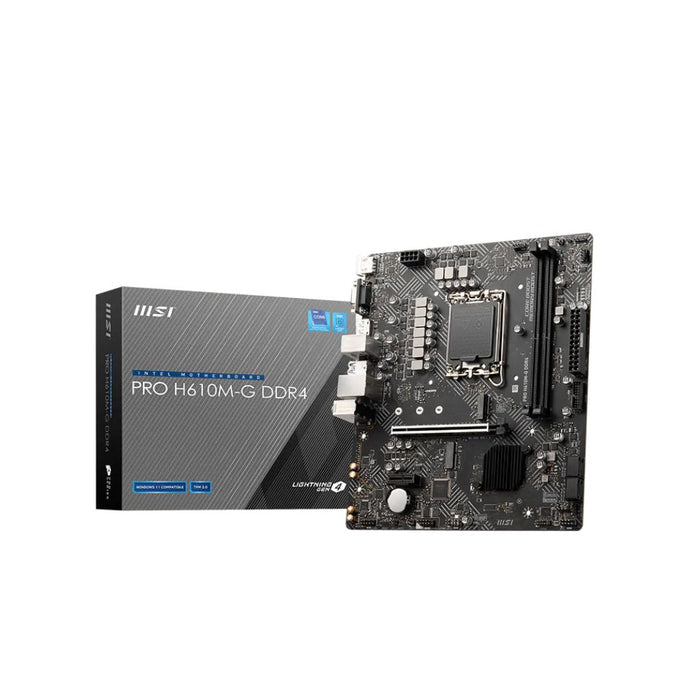

MB MSI PRO H610M-G D4 Motherboard

Motherboard Specification

• Socket / CPU Support: Intel® Socket LGA1700 (Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors)
• Chipset: Intel® H610
• Form Factor: Micro-ATX (9.6 in x 8.3 in / 24.4 cm x 21.1 cm)
• Memory Support: DDR4 (Supports up to DDR4 3200 / 2933 / 2666 / 2400 / 2133 MHz, Dual-Channel, Non-ECC Un-buffered, Intel® XMP)
• Memory Slots & Max Capacity: 2x DIMM slots, Up to 64 GB
• PCIe Expansion Slots:
  ◦ 1x PCIe 4.0 x16 slot (PCI_E1; supports x16 mode from CPU, Steel Armor)
  ◦ 1x PCIe 3.0 x1 slot (PCI_E2; from H610 Chipset)
  ◦ 1x M.2 slot Key E (M2_WIFI1; dedicated for PCIe Wi-Fi module only)
• M.2 Storage Slots:
  ◦ 1x M.2 slot (Key M, type 2242/2260/2280 from H610 Chipset) — supports PCIe 3.0 x4 & SATA 6Gb/s modes
• SATA Ports: 4x SATA 6Gb/s (SATA7 disabled when using M.2 SATA SSD)

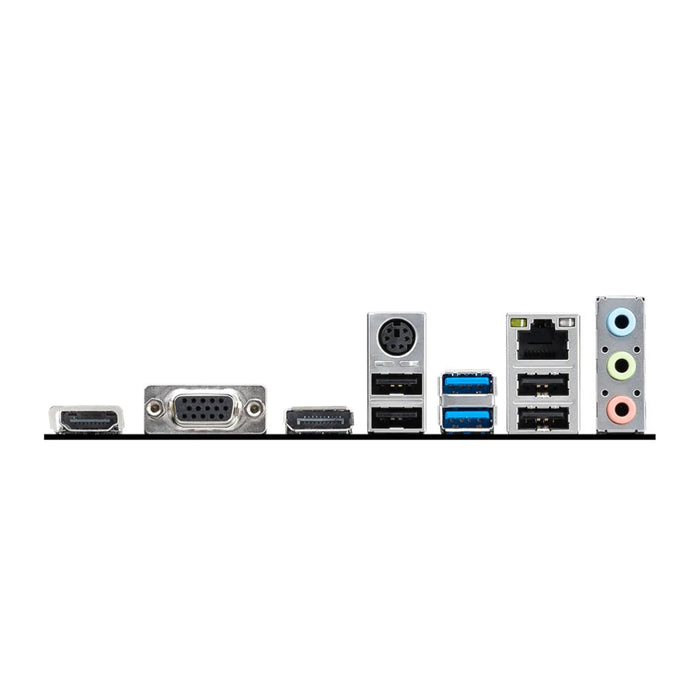

• Rear I/O USB Ports:
  ◦ 2x USB 3.2 Gen 1 Type-A (5Gbps)
  ◦ 4x USB 2.0 Type-A
• Internal Front Panel USB Headers:
  ◦ 1x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 Type-A ports)
  ◦ 1x USB 2.0 header (supports 2 additional USB 2.0 ports)
• Networking & Connectivity: Intel® I219V 1Gbps LAN (No onboard Wi-Fi / Bluetooth; features M.2 Key E slot for expansion)
• Display Outputs:
  ◦ 1x DisplayPort 1.4 (supports up to 4K @ 60Hz)
  ◦ 1x HDMI 2.1 with HDR (supports up to 4K @ 60Hz)
  ◦ 1x VGA (supports up to 2048x1536 @ 50Hz / 2048x1280 @ 60Hz)
• Audio Codec: Realtek® ALC892 / ALC897 7.1-Channel High Definition Audio CODEC (with 3x Audio jacks)
• Power Delivery / Power Connectors: Core Boost digital power design, 1x 24-pin ATX Main Power connector, 1x 8-pin ATX 12V Power connector
• RGB & Fan Headers:
  ◦ 1x 4-pin CPU Fan header
  ◦ 1x 4-pin System Fan header
  ◦ 2x 3-pin RAINBOW ARGB headers (5V)
  ◦ 1x 4-pin RGB LED header (12V)
• Special Features: 4x EZ Debug LEDs (CPU, DRAM, VGA, BOOT), Steel Armor PCIe slot, PS/2 Combo port, TPM 2.0 pin header
