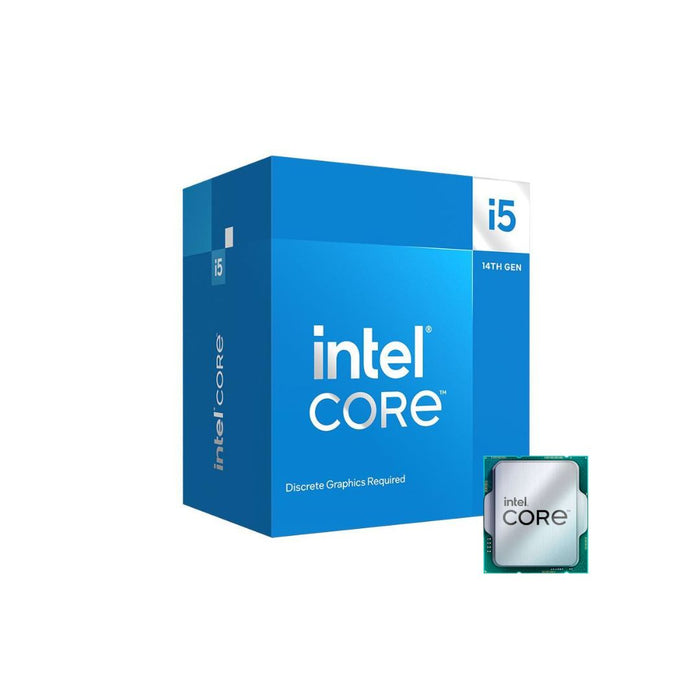

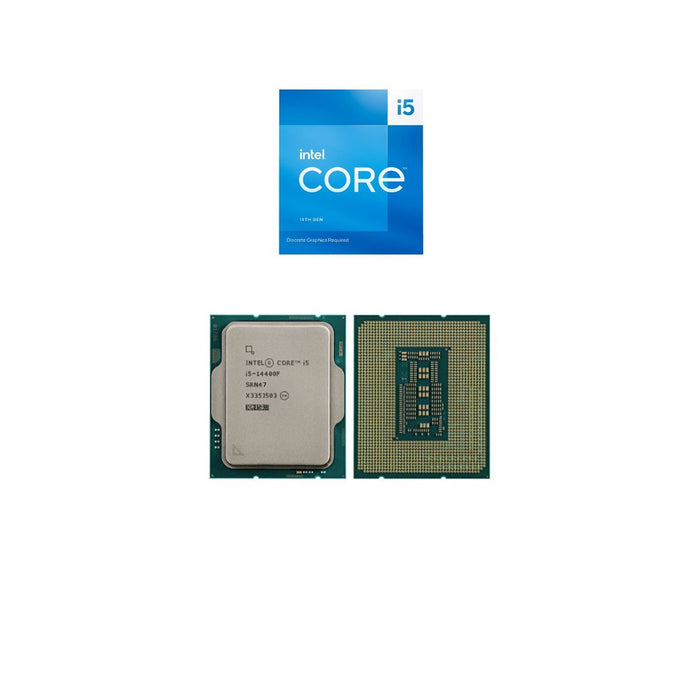

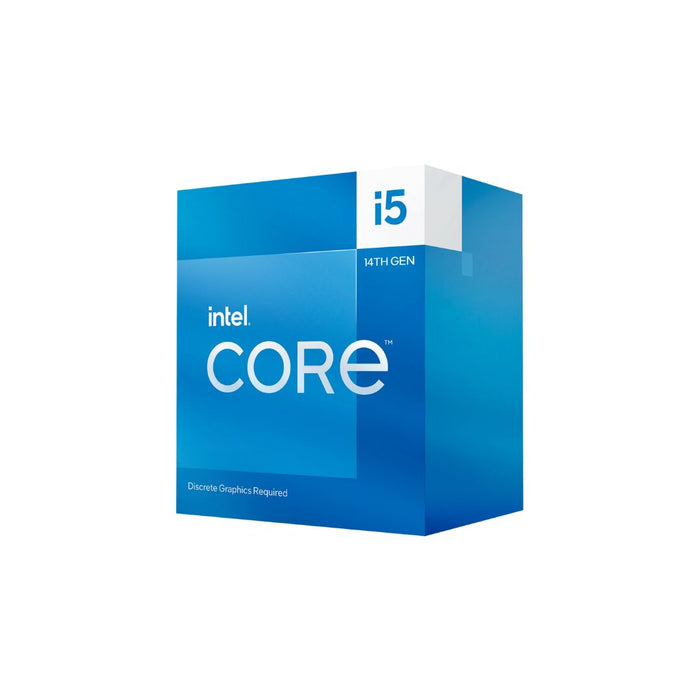

Intel® Core™ i5-14400F Desktop Processor - Try

Processor Specification

• Sockets Supported: LGA1700
• Architecture / Code: Raptor Lake Refresh
• Total Cores: 10 Cores
• Core Breakdown: 6 Performance-cores (P-cores) / 4 Efficient-cores (E-cores)
• Total Threads: 16 Threads
• Multithreading: Enabled (Intel Hyper-Threading Technology on P-cores)
• Max Turbo / Boost Frequency: Up to 4.7 GHz (P-Core Max: 4.7 GHz, E-Core Max: 3.5 GHz)
• Base Frequency: P-Core Base: 2.5 GHz, E-Core Base: 1.8 GHz
• L3 Cache: 20 MB (Intel Smart Cache)
• L2 Cache: 9.5 MB
• Processor Power: Base Power: 65 W | Max Turbo Power (MTP): 148 W
• Max Temperature (TjMax): 100 °C
• System Memory Support: Up to DDR5-4800 MT/s / Up to DDR4-3200 MT/s
• Max Memory Capacity: 192 GB
• Memory Channels: Dual-Channel (2 Channels)
• PCI Express Revision & Lanes: PCIe 5.0 & 4.0 (Up to 20 CPU Lanes)
• Processor Graphics: None (Requires discrete graphics card)
• NPU / AI Acceleration: No dedicated NPU (Includes Intel DL Boost & GNA 3.0)
• Unlocked for Overclocking: No
