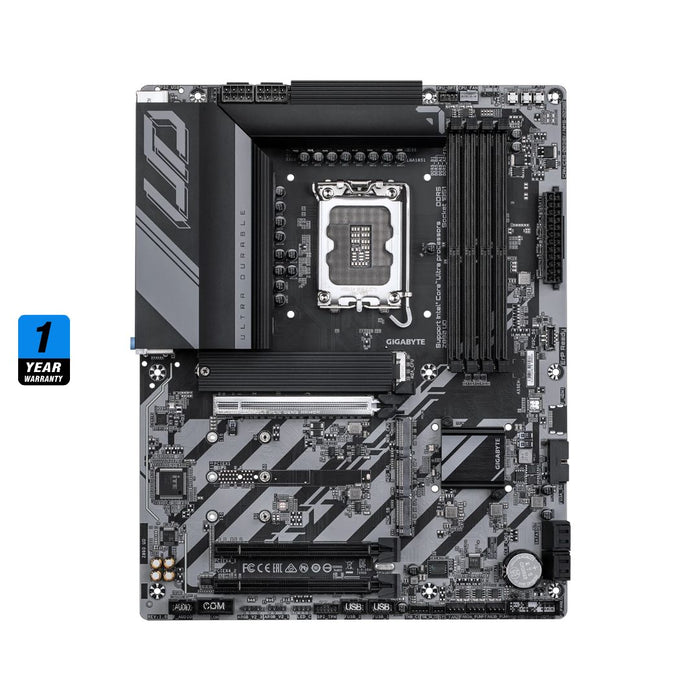

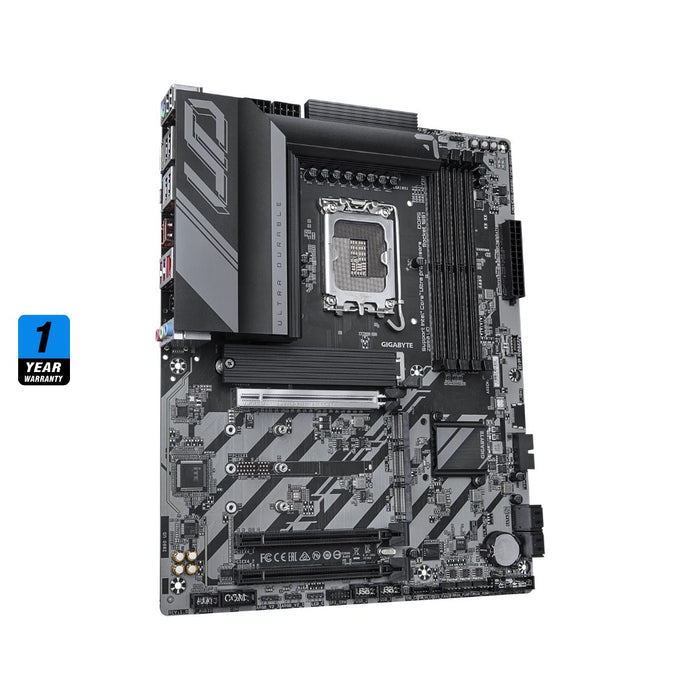

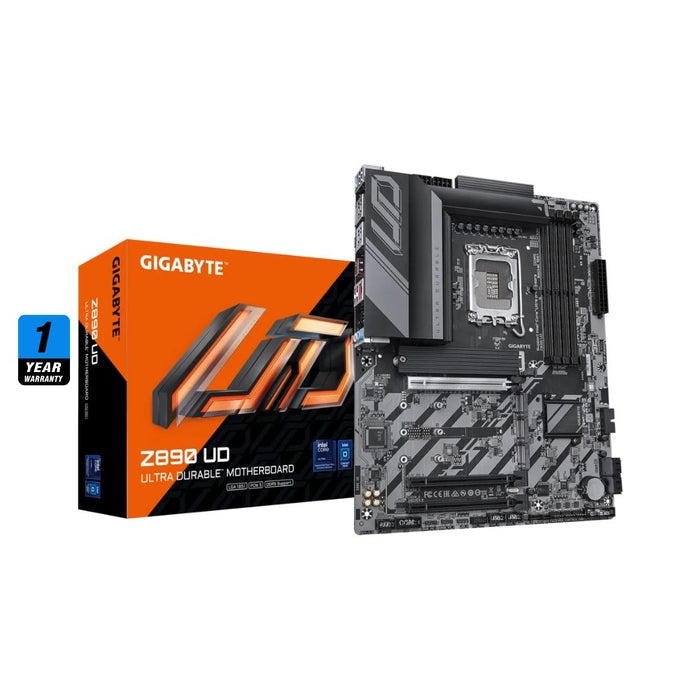

Gigabyte Z890 UD, Motherboard

Motherboard Specification

• Socket / CPU Support: Intel® Socket LGA1851 (Supports Intel® Core™ Ultra Processors Series 2)
• Chipset: Intel® Z890 Express
• Form Factor: ATX (12.0 in x 9.6 in / 30.5 cm x 24.4 cm)
• Memory Support: DDR5 (Supports DDR5 8800+(O.C.) / 8600(O.C.) / 8400(O.C.) / 8200(O.C.) / 8000(O.C.) / 7800(O.C.) / 7600(O.C.) / 7200(O.C.) / 6400 / 5600 MT/s, Dual-Channel, Non-ECC Un-buffered, Intel® XMP 3.0, CUDIMM support)
• Memory Slots & Max Capacity: 4x DIMM slots, Up to 256 GB (Supports single 64GB DIMMs)
• PCIe Expansion Slots:
  ◦ 1x PCIe 5.0 x16 slot (PCIEX16; supports x16 mode from CPU, PCIe EZ-Latch)
  ◦ 1x PCIe 4.0 x16 slot (PCIEX4_1; supports x4 mode from Z890 Chipset)
  ◦ 1x PCIe 4.0 x16 slot (PCIEX4_2; supports x4 mode from Z890 Chipset)
  ◦ 1x PCIe 3.0 x16 slot (PCIEX1; supports x1 mode from Z890 Chipset)
• M.2 Storage Slots:
  ◦ 1x M.2_1 slot (M2A_CPU, Key M, type 22110/2280 from CPU) — supports PCIe 5.0 x4/x2, includes M.2 Thermal Guard
  ◦ 1x M.2_2 slot (M2Q_SB, Key M, type 22110/2280 from Z890 Chipset) — supports PCIe 4.0 x4/x2
  ◦ 1x M.2_3 slot (M2P_SB, Key M, type 22110/2280 from Z890 Chipset) — supports PCIe 4.0 x4/x2
  ◦ 1x M.2_4 slot (M2M_SB, Key M, type 22110/2280 from Z890 Chipset) — supports PCIe 4.0 x4/x2 & SATA modes
• SATA Ports: 4x SATA 6Gb/s (Supports RAID 0, 1, 5, 10)

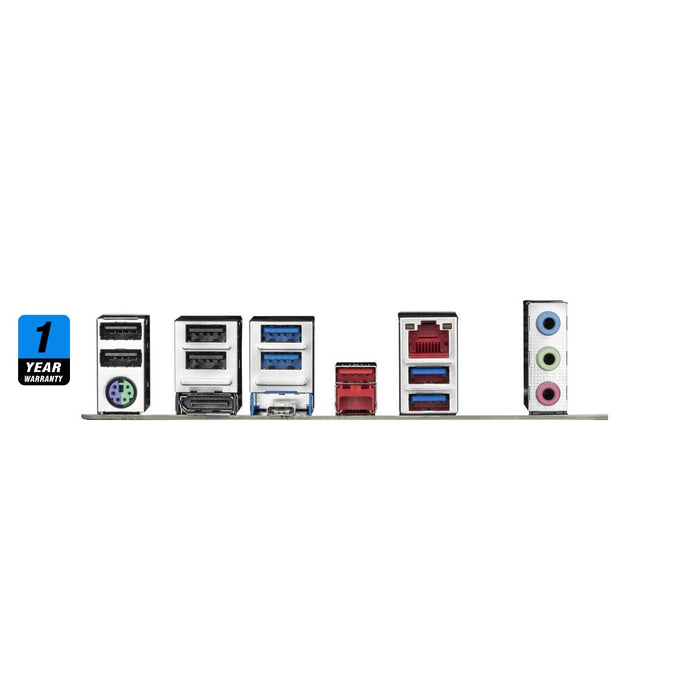

• Rear I/O USB Ports:
  ◦ 1x USB Type-C® port with USB4® support (40Gbps, supports DisplayPort 1.4 video output)
  ◦ 1x USB 3.2 Gen 2 Type-A (10Gbps)
  ◦ 4x USB 3.2 Gen 1 Type-A (5Gbps)
  ◦ 4x USB 2.0/1.1 Type-A
• Internal Front Panel USB Headers:
  ◦ 1x USB 3.2 Gen 2x2 Type-C® header (20Gbps)
  ◦ 1x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 Type-A ports)
  ◦ 2x USB 2.0/1.1 headers (support 4 additional USB 2.0 ports)
• Networking & Connectivity: Realtek® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps) (No onboard Wi-Fi / Bluetooth)
• Display Outputs:
  ◦ 1x USB4® Type-C® port (supports DisplayPort, up to 3840x2160 @ 144Hz)
  ◦ 1x DisplayPort 2.1 (supports up to 3840x2160 @ 144Hz)
• Audio Codec: Realtek® Audio CODEC 7.1-Channel High Definition Audio (with High-End Audio Capacitors & Audio Noise Guard)
• Power Delivery / Power Connectors: Twin 12+1+2 Phases Digital VRM Solution (60A DrMOS), 1x 24-pin ATX Main Power connector, 2x 8-pin ATX 12V Power connectors
• RGB & Fan Headers:
  ◦ 1x 4-pin CPU Fan header
  ◦ 1x 4-pin Water Cooling CPU Fan header
  ◦ 3x 4-pin System Fan headers
  ◦ 1x 4-pin System Fan/Water Cooling Pump header
  ◦ 3x Addressable RGB Gen2 LED headers (ARGB 5V)
  ◦ 1x RGB LED strip header (12V)
• Special Features: Onboard USB4®, PCIe EZ-Latch, M.2 EZ-Latch, Q-Flash Plus BIOS update button, Smart Fan 6 with Fan Stop, GIGABYTE Control Center (GCC) support, TPM header
