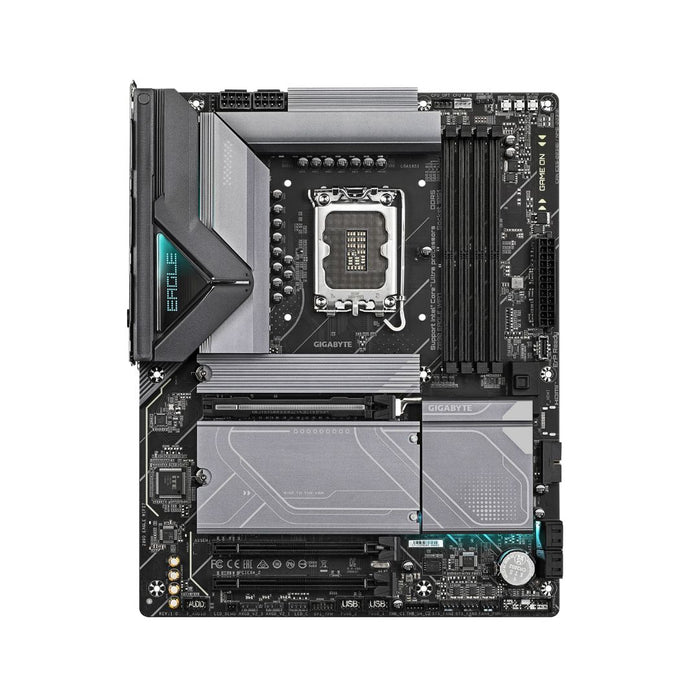

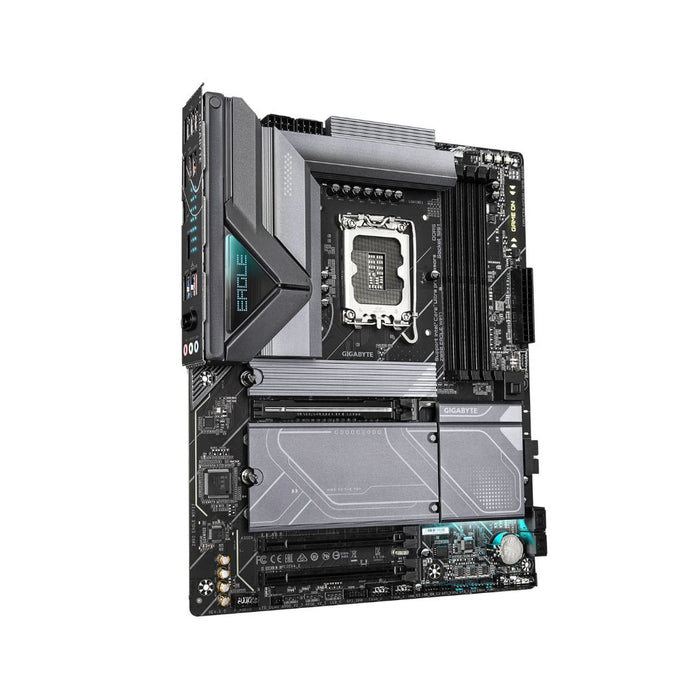

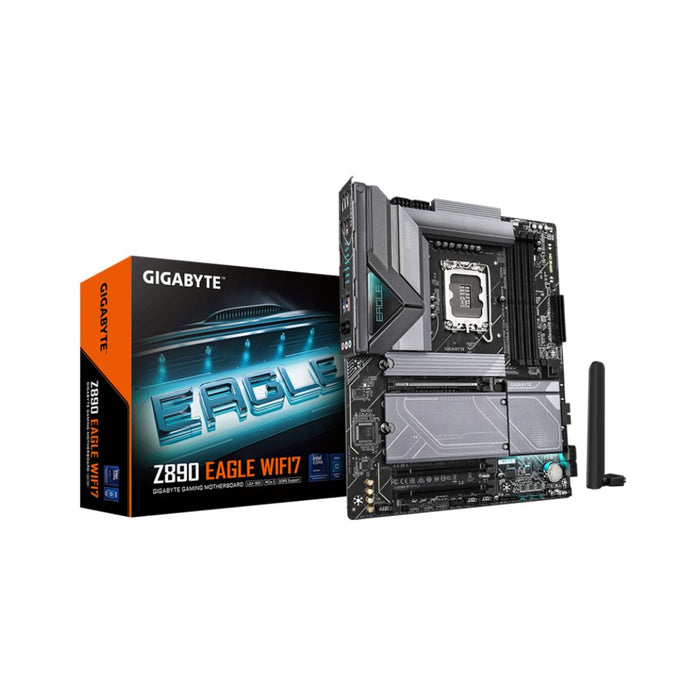

Gigabyte Z890 EAGLE WIFI7

Motherboard Specification

• Socket / CPU Support: Intel® Socket LGA1851 (Supports Intel® Core™ Ultra Processors - Series 2)
• Chipset: Intel® Z890 Express
• Form Factor: ATX (12.0 in x 9.6 in / 30.5 cm x 24.4 cm)
• Memory Support: DDR5 (Supports up to DDR5 9466+(OC) MT/s, CUDIMM & UDIMM support, Dual-Channel, Non-ECC Un-buffered, Intel® XMP 3.0)
• Memory Slots & Max Capacity: 4x DIMM slots, Up to 256 GB
• PCIe Expansion Slots:
  ◦ 1x PCIe 5.0 x16 slot (PCIEX16; supports x16 mode from CPU, PCIe UD Slot X with EZ-Latch Plus)
  ◦ 2x PCIe 4.0 x16 slots (PCIEX4_1 & PCIEX4_2; support x4 mode from Chipset)
• M.2 Storage Slots:
  ◦ 1x M.2_1 slot (M2A_CPU, Key M, type 25110/22110/2580/2280 from CPU) — supports PCIe 5.0 x4/x2
  ◦ 1x M.2_2 slot (M2B_CPU, Key M, type 22110/2280 from CPU) — supports PCIe 4.0 x4/x2
  ◦ 1x M.2_3 slot (M2Q_SB, Key M, type 22110/2280 from Chipset) — supports PCIe 4.0 x4/x2
  ◦ 1x M.2_4 slot (M2M_SB, Key M, type 22110/2280 from Chipset) — supports PCIe 4.0 x4/x2 & SATA 6Gb/s
• SATA Ports: 4x SATA 6Gb/s (Supports RAID 0, 1, 5, 10 for NVMe & SATA storage)

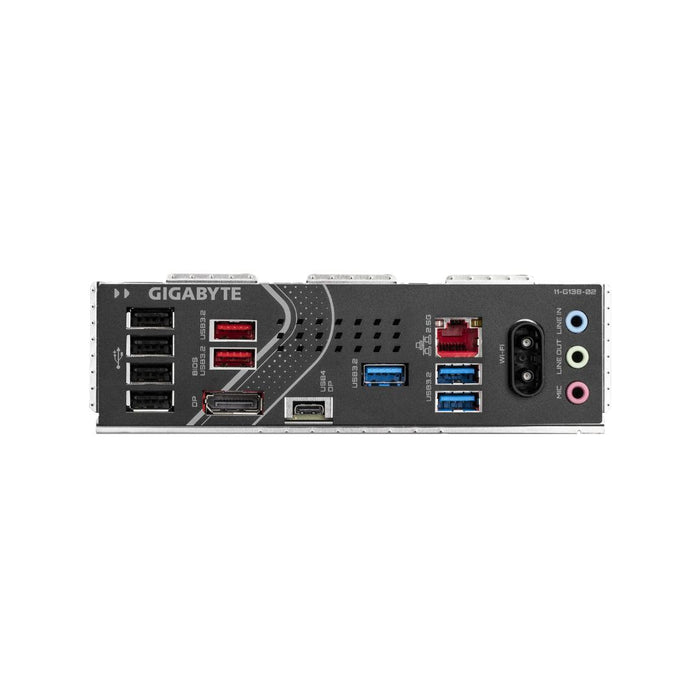

• Rear I/O USB Ports:
  ◦ 1x USB4® 40Gbps Type-C® (supports DisplayPort 2.1 video output)
  ◦ 2x USB 3.2 Gen 2 Type-A (10Gbps)
  ◦ 3x USB 3.2 Gen 1 Type-A (5Gbps)
  ◦ 4x USB 2.0/1.1 Type-A
• Internal Front Panel USB Headers:
  ◦ 1x USB 3.2 Gen 2 Type-C® header (10Gbps)
  ◦ 1x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 Type-A ports)
  ◦ 2x USB 2.0/1.1 headers (support 4 additional USB 2.0 ports)
• Networking & Connectivity: Realtek® 2.5GbE LAN, Wi-Fi 7 (802.11be, 160MHz bandwidth, WIFI EZ-Plug with directional Ultra-high gain Antenna), Bluetooth 5.4
• Display Outputs:
  ◦ 1x DisplayPort 2.1 (supports up to 3840x2160 @ 144Hz)
  ◦ 1x USB4® Type-C® DisplayPort (supports up to 3840x2160 @ 144Hz)
• Audio Codec: Realtek® ALC897 7.1-Channel High Definition Audio CODEC (with 3x Audio jacks)
• Power Delivery / Power Connectors: Digital Twin 14+1+2 VRM Design (60A DrMOS), 1x 24-pin ATX Main Power connector, 2x 8-pin ATX 12V Power connectors
• RGB & Fan Headers:
  ◦ 1x 4-pin CPU Fan header
  ◦ 1x 4-pin CPU Fan/Water Cooling Pump header
  ◦ 3x 4-pin System Fan headers
  ◦ 1x 4-pin System Fan/Water Cooling Pump header
  ◦ 3x Addressable RGB Gen2 headers (ARGB 5V)
  ◦ 1x RGB LED strip header (12V)
• Special Features: PCIe EZ-Latch Plus, M.2 EZ-Latch Click & EZ-Latch Plus, WIFI EZ-Plug, Q-Flash Plus button, Clear CMOS jumper, Thunderbolt™ 5 add-in card support headers
