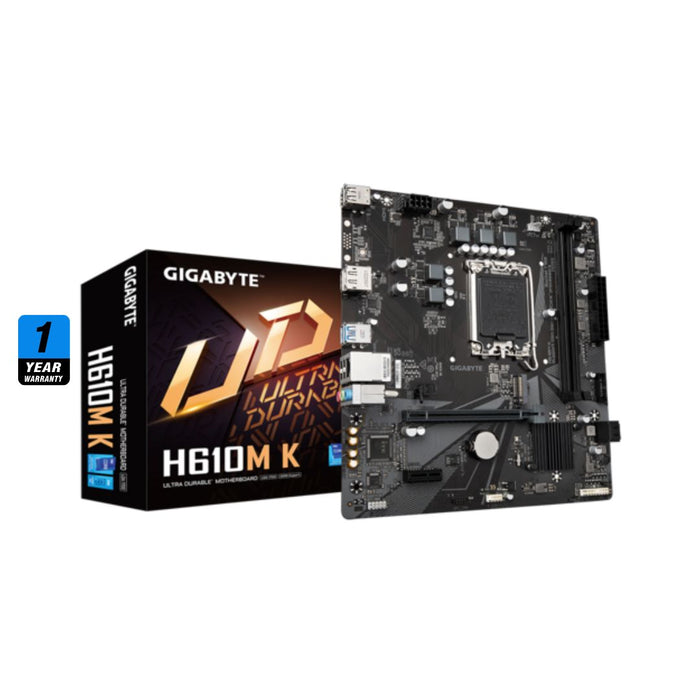

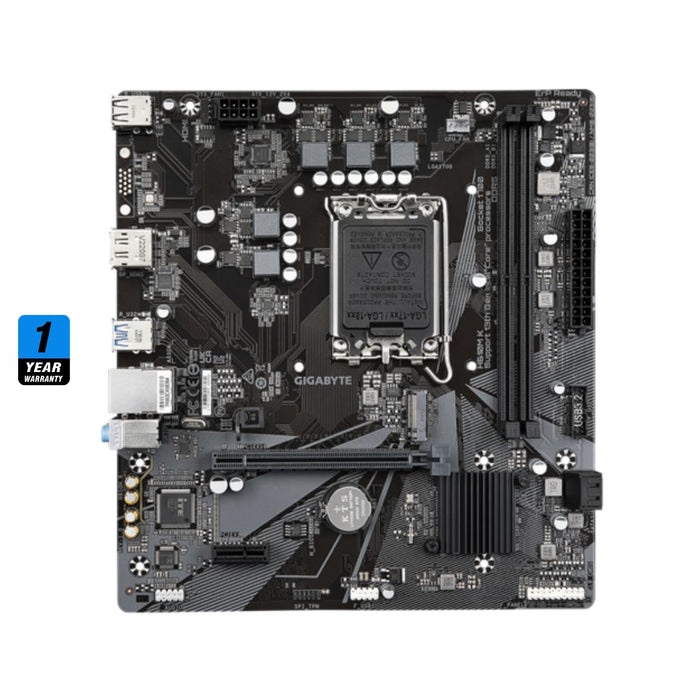

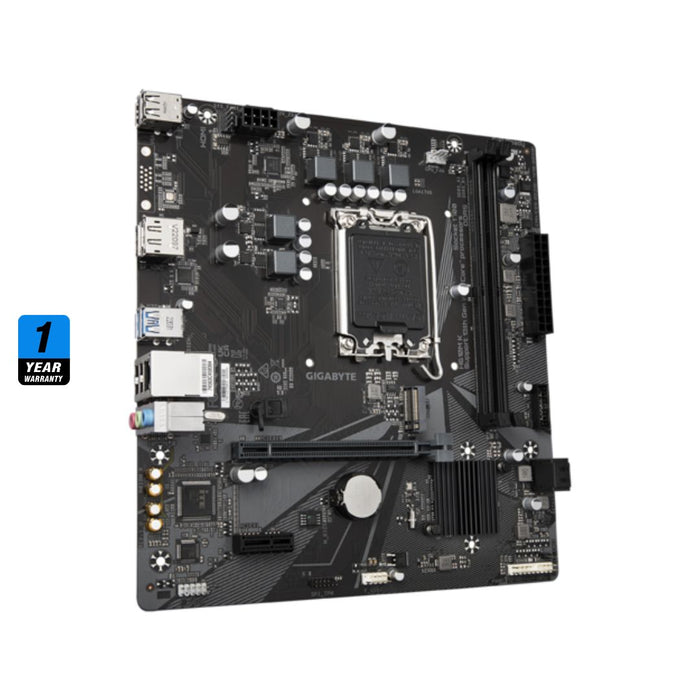

Gigabyte H610M K DDR5 , Motherboard

Motherboard Specification

• Socket / CPU Support: Intel® Socket LGA1700 (Supports 14th, 13th, and 12th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors)
• Chipset: Intel® H610 Express
• Form Factor: Micro-ATX (9.05 in x 8.46 in / 23.0 cm x 21.5 cm)
• Memory Support: DDR5 (Supports DDR5 5600 / 5200 / 4800 / 4400 MT/s, Dual-Channel, Non-ECC Un-buffered, Intel® XMP 3.0)
• Memory Slots & Max Capacity: 2x DIMM slots, Up to 128 GB (Supports single 64GB DIMMs)
• PCIe Expansion Slots:
  ◦ 1x PCIe 4.0 x16 slot (PCIEX16; supports x16 mode from CPU)
  ◦ 1x PCIe 3.0 x1 slot (PCIEX1; from H610 Chipset)
• M.2 Storage Slots:
  ◦ 1x M.2 slot (Socket 3, Key M, type 2280/2260 from H610 Chipset) — supports PCIe 3.0 x4/x2 SSDs
• SATA Ports: 2x SATA 6Gb/s

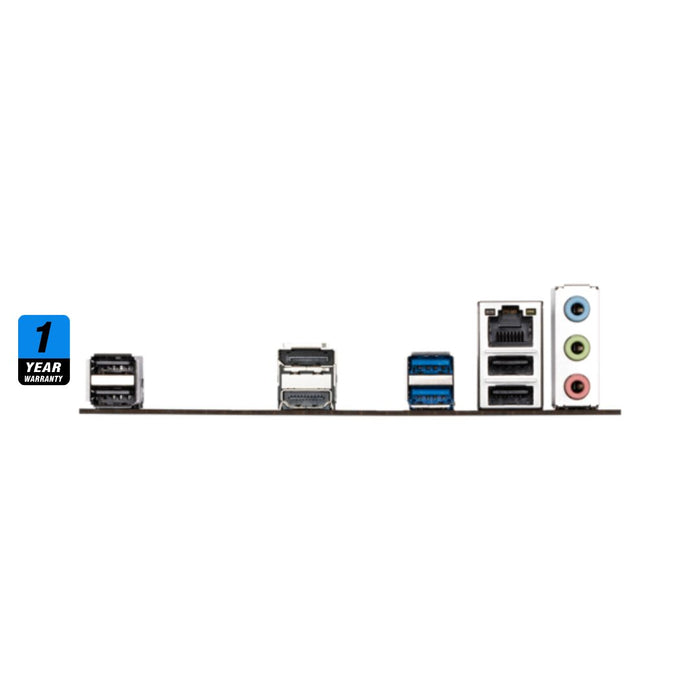

• Rear I/O USB Ports:
  ◦ 2x USB 3.2 Gen 1 Type-A (5Gbps)
  ◦ 4x USB 2.0/1.1 Type-A
• Internal Front Panel USB Headers:
  ◦ 1x USB 3.2 Gen 1 header (supports 2 additional USB 3.2 Gen 1 Type-A ports)
  ◦ 1x USB 2.0/1.1 header (supports 2 additional USB 2.0 ports)
• Networking & Connectivity: Realtek® 1GbE LAN (1 Gbps/100 Mbps/10 Mbps)
• Display Outputs:
  ◦ 1x DisplayPort 1.2 (supports up to 4096x2304 @ 60Hz)
  ◦ 1x HDMI 2.1 (supports up to 4096x2160 @ 60Hz)
• Audio Codec: Realtek® Audio CODEC 7.1-Channel High Definition Audio (with High-End Audio Capacitors & Audio Noise Guard)
• Power Delivery / Power Connectors: 3+1+1 Hybrid Power Design (50A Low RDS(on) MOSFETs), 1x 24-pin ATX Main Power connector, 1x 8-pin ATX 12V Solid Pin Power connector
• RGB & Fan Headers:
  ◦ 1x 4-pin CPU Fan header
  ◦ 1x 4-pin System Fan header (Smart Fan 6 support)
  ◦ (Note: No onboard RGB / ARGB headers)
• Special Features: Smart Fan 6 with Fan Stop, Anti-Sulfur Resistors design, GIGABYTE APP Center, Trusted Platform Module (TPM 2.0 SPI) header
